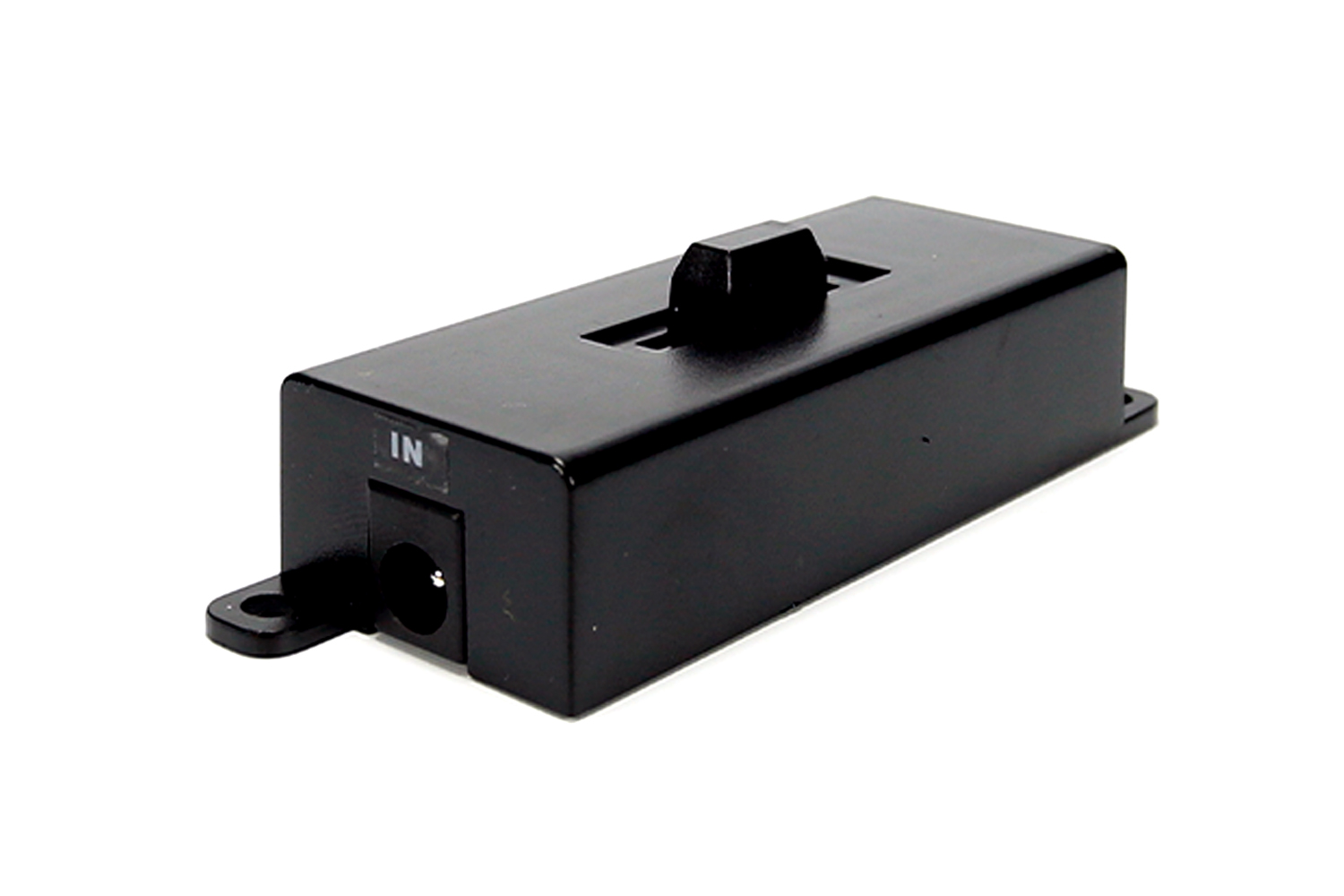

In-Line Low Voltage Dimmer Module
LTF’s low voltage dimmer modules are a fast and simple solution for adding deep, smooth dimming to lighting systems. These UL-listed dimmers are ideal for linear constant voltage LED applications including 12-24V DC LED tapes. Featuring a low profile design less than 1″ tall and the ability to dim from 100% to 1%, the in-line dimmer provides versatility to undercabinet and task lighting installations in both residential and commercial lighting environments.
Features
- 12-24V DC, 150W low voltage lighting systems
- Low profile, small form factor
- Dimming from 100% to 1%
- Black, white or custom colors available
- UL listed
Applications
- Architectural LED tapes
- Undercabinet applications
- Linear LED lighting
- Cove lighting
Standard Models
Custom Form Factors Upon Request
| Model Number | Wattage | Input Voltage | Dimming Range | Dimensions | Load Type | Finishes | Specs Sheet |
|---|---|---|---|---|---|---|---|
| TA150W24VDIM | 70W, 4A max | 12V - 24V DC | 100% to <1% | 85.1 x 28.58 x 22.25mm | LED Lighting | Black, White, Custom | View Specs |
| LTF Technology |
Connect with LTF to Request a Sample or Quote
Product Features

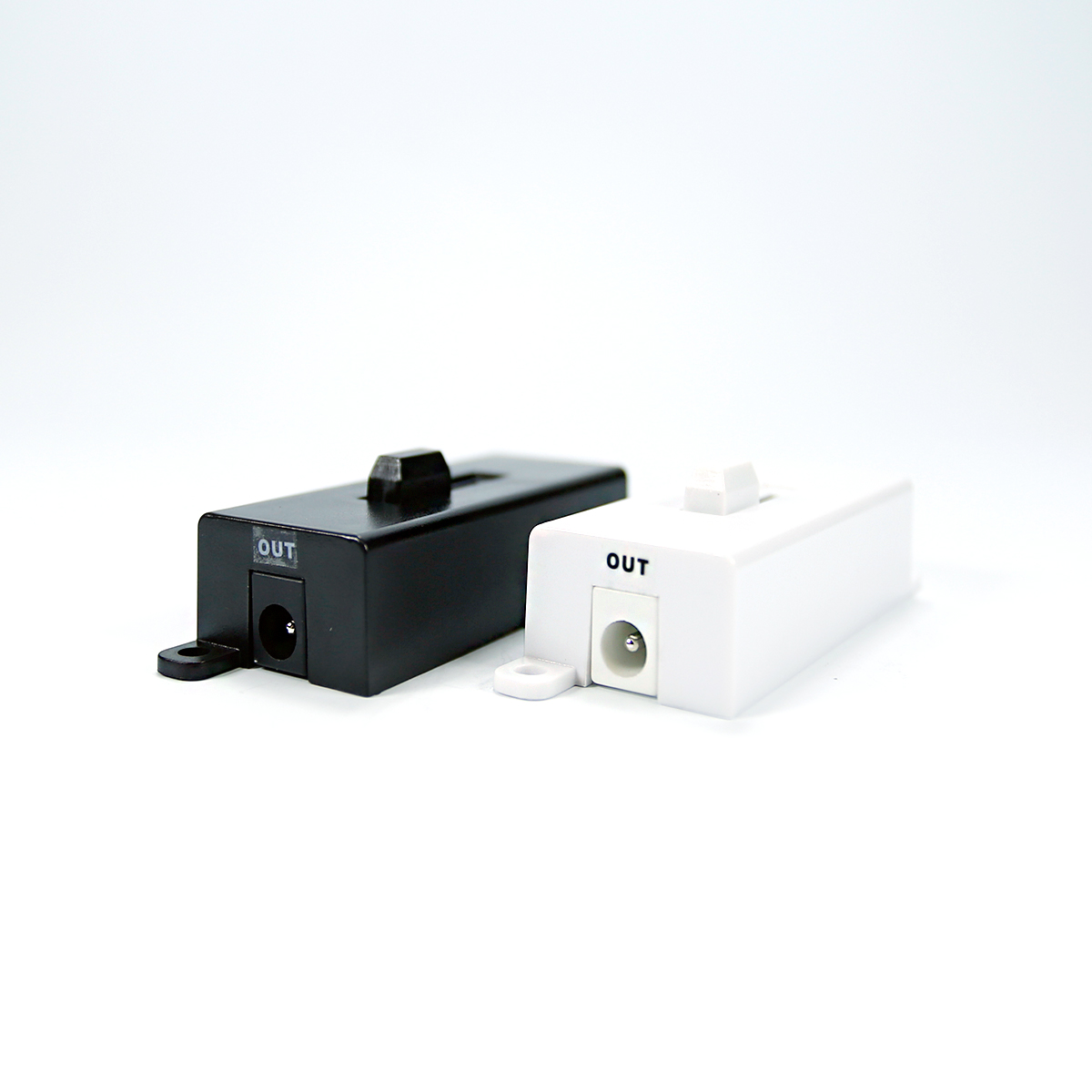

Color Choices
Dimmers are available in black, white, or custom colors to suit your installation.

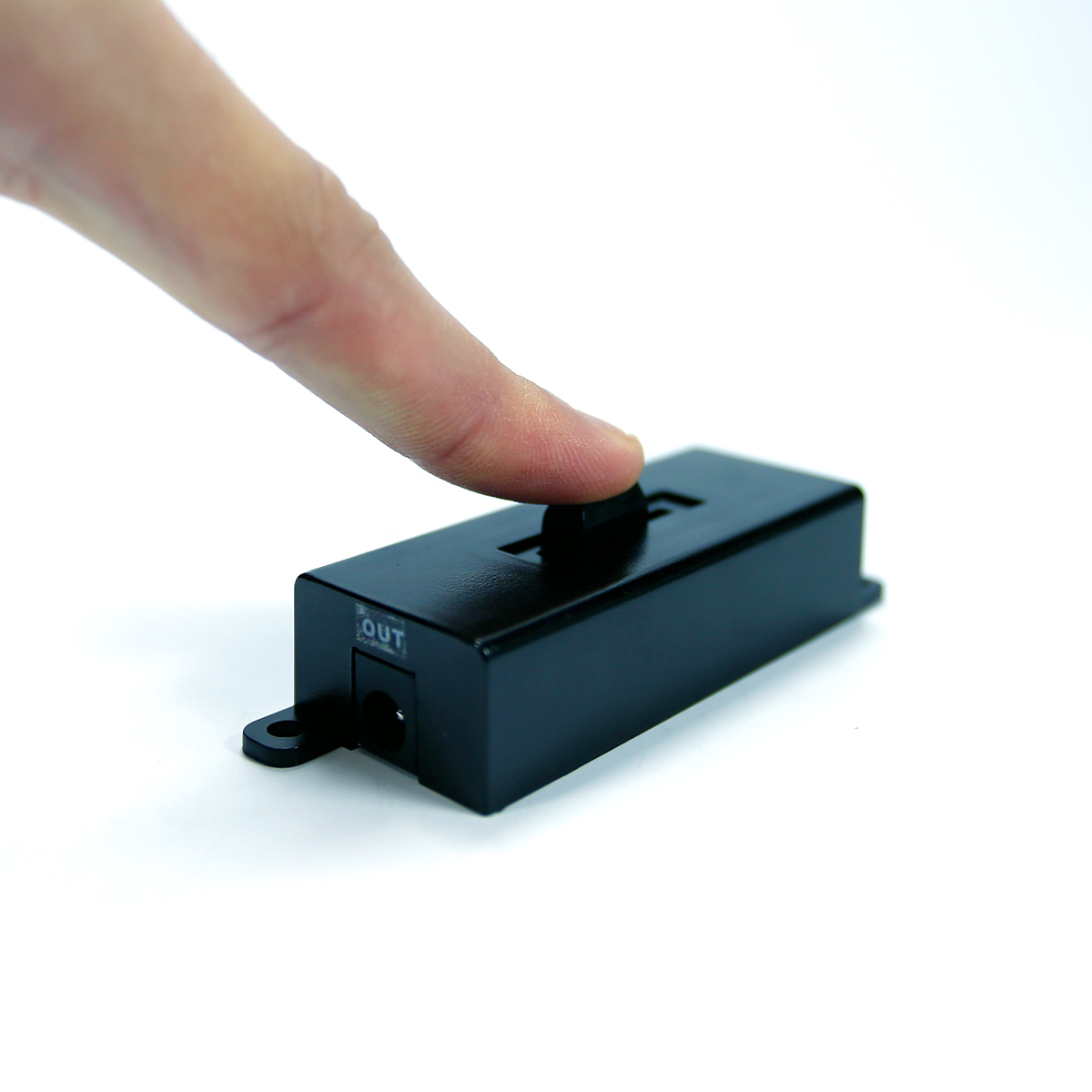

Low Profile
The compact form factor of our dimmer allows for discreet installation under cabinets or wherever a clean appearance is desired.

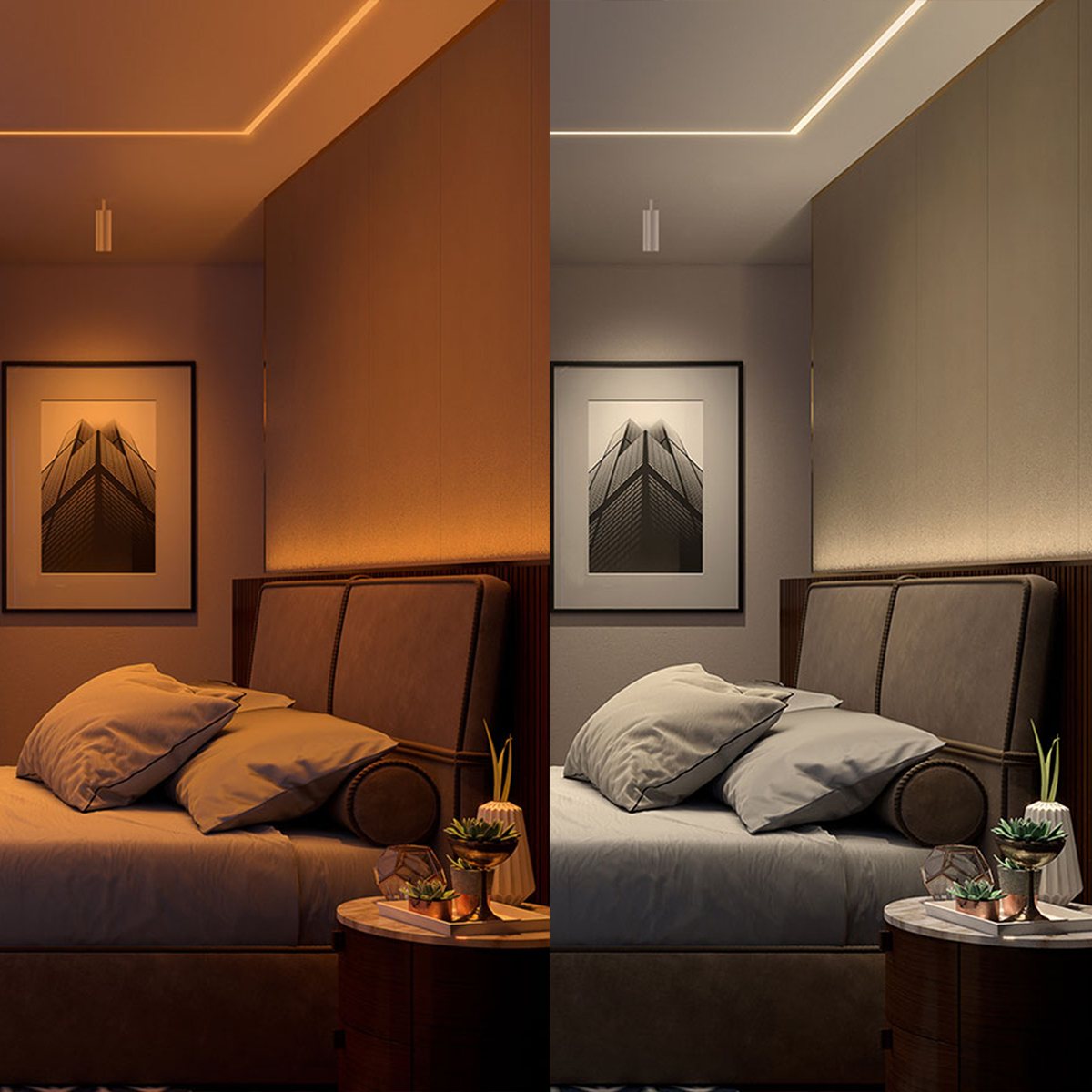

Precise Dimming
Smooth dimming from 100% to 1% allows users to dial in their preferred atmosphere.
