Wireless LED Controllers
LiteStream C wireless controllers are easy to install for IoT applications in need of multi-channel, dimming, color tuning, zone, and RGB control capabilities. With a high power density of 30W/cubic inch, LiteStream C can be added at the output of any standard constant voltage LED driver. These controllers are compatible with Tuya and LiteStream apps and are offered in four models: 1-channel for dimming, 2-channel/200W for color tuning, 4-channel/300W for zone controls, and 5-channel/300W for RGB+W controls.
LiteStream’s innovative products are designed to maximize the reliable, secure, robust and user-friendly experience that you’ve come to expect from LTF products.
Features
- 12V-24V constant voltage applications
- Up to 300W (100W per channel)
- Fully dimmable
- Bluetooth & WiFi compatible
- Small form factor
- Google & Alexa compatible
- Enables multi-channel control
- FCC compliant
Applications
- Indoor & outdoor lighting systems
- LED tapes & bulbs
- 2-channel for color / CCT tunable LEDs
- 4-channel 300W for zone controls
- 5-channel 300W for RGB+W controls
- New or retrofit installations
Standard Models
Custom Form Factors Upon Request
| Model Number | Wattage | Input V | Output V | Load Type | Case | Specs Sheet |
|---|---|---|---|---|---|---|
| SI1X100WAD1224BT1 | 96W Per Channel | 12V - 24V DC | 12V - 24V DC | Single Channel 12V - 24V DC LED | BT1 | View Specs |
| SI2X100WAD1224BT2 | 96W Per Channel | 12V - 24V DC | 12V - 24V DC | Dual Channel 12V - 24V DC LED | BT2 | View Specs |
| LTF Technology |
Connect with LTF to Request a Sample or Quote
Product Features
Wireless Compatibility

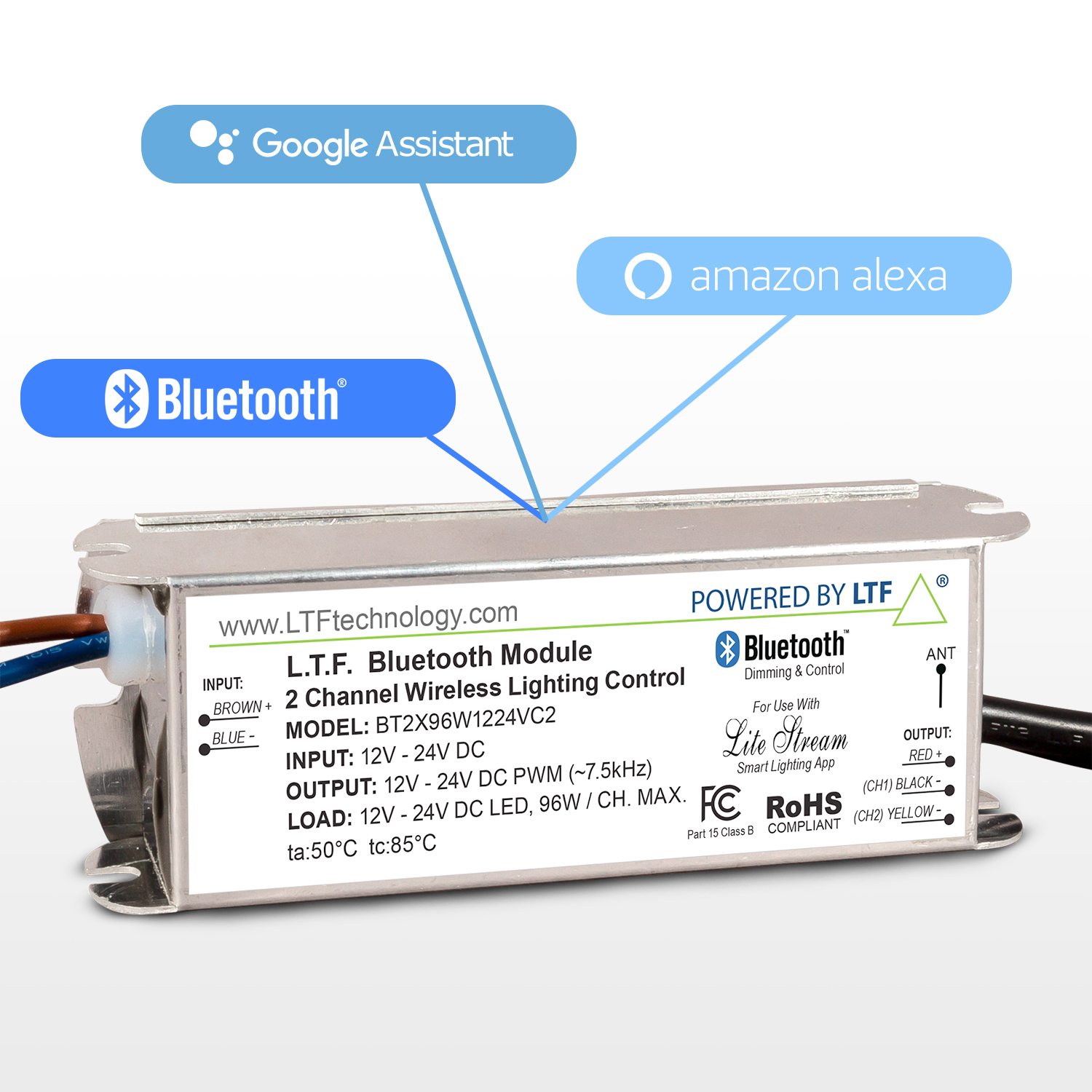

LTF’s LiteStream products are compatible with Google and Alexa, allowing users to control lighting with simple voice commands.
Multi-Channel
Enables any single-channel LED driver to become a 2-channel CCT color tunable or multi-zone IoT device.
5-Channel
Enables RGB+W with IoT control from any LED driver.
