Track Lighting Adapters



LTF’s uniquely designed low- and line-voltage track lighting adapters allow OEMs to connect light fixtures to industry-standard track lighting systems. Available in three colors, multiple track connector types, and multiple fixture connector types, these adapters deliver performance and functionality.

Linear AC LED Boards

Features

  • 120V line voltage
  • 12V or 24V low voltage
  • 60W for AC LED and halogen bulbs
  • Up to 75W models for LED or HID applications
  • Black, white, or silver enclosure; custom colors available
  • High impact enclosure
  • Dimmable
  • ETL listed

Applications

  • Architectural & commercial track systems
  • Residential & hospitality track systems
  • Compatible with FreeJack, Fusion Jack, QuickJack-type fixtures
  • Compatible with H, J, & L-type track lighting systems
  • Great for updating lighting without changing the track

Standard Models

Custom Form Factors Upon Request

50K Hour Warranty Title 24 Compliant and Dim to Warm 3000K Dims to 1800K
Model NumberWattageInput VOutput VDimensionsFinishesFixture TypeSpecs Sheet
FJTRAK60LEDHW60W120V AC 0.5A 50/60Hz12V AC112 x 38 x 34mmWhiteHView Specs
FJTRAK60LEDHB60W120V AC 0.5A 50/60Hz12V AC112 x 38 x 34mmBlackHView Specs
FJTRAK60LEDHS60W120V AC 0.5A 50/60Hz12V AC112 x 38 x 34mmSilverHView Specs
FJTRAK60LEDJW60W120V AC 0.5A 50/60Hz12V AC112 x 38 x 34mmWhiteJView Specs
FJTRAK60LEDJB60W120V AC 0.5A 50/60Hz12V AC112 x 38 x 34mmBlackJView Specs
FJTRAK60LEDJS60W120V AC 0.5A 50/60Hz12V AC112 x 38 x 34mmSilverJView Specs
FJTRAK60LEDLW60W120V AC 0.5A 50/60Hz12V AC112 x 38 x 34mmWhiteLView Specs
FJTRAK60LEDLB60W120V AC 0.5A 50/60Hz12V AC112 x 38 x 34mmBlackLView Specs
FJTRAK60LEDLS60W120V AC 0.5A 50/60Hz12V AC112 x 38 x 34mmSilverLView Specs
FJTRAK75LEDHW75W120V AC 0.68A 50/60Hz12V AC112 x 38 x 34mmWhiteHView Specs
FJTRAK75LEDHB75W120V AC 0.68A 50/60Hz12V AC112 x 38 x 34mmBlackHView Specs
FJTRAK75LEDHS75W120V AC 0.68A 50/60Hz12V AC112 x 38 x 34mmSilverHView Specs
FJTRAK75LEDJW75W120V AC 0.68A 50/60Hz12V AC112 x 38 x 34mmWhiteJView Specs
FJTRAK75LEDJB75W120V AC 0.68A 50/60Hz12V AC112 x 38 x 34mmBlackJView Specs
FJTRAK75LEDJS75W120V AC 0.68A 50/60Hz12V AC112 x 38 x 34mmSilverJView Specs
FJTRAK75LEDLW75W120V AC 0.68A 50/60Hz12V AC112 x 38 x 34mmWhiteLView Specs
FJTRAK75LEDLB75W120V AC 0.68A 50/60Hz12V AC112 x 38 x 34mmBlackLView Specs
FJTRAK75LEDLS75W120V AC 0.68A 50/60Hz12V AC112 x 38 x 34mmSilverLView Specs
LNTRAKHG100W120V AC 1A 50/60Hz12V AC91 x 37 x 37mmWhite, Black, AluminumHView Specs
LNTRAKJG100W120V AC 1A 50/60Hz12V AC91 x 37 x 37mmWhite, Black, AluminumJView Specs
LNTRAKLG100W120V AC 1A 50/60Hz12V AC91 x 37 x 37mmWhite, Black, AluminumLView Specs
LNTRAKHFP70W120V AC 0.8A 50/60Hz12V AC235 x 88 x 48mmBlack, White, Silver, CustomHView Specs
LNTRAKJFP70W120V AC 0.8A 50/60Hz12V AC235 x 88 x 48mmBlack, White, Silver, CustomJView Specs
LNTRAKLFP70W120V AC 0.8A 50/60Hz12V AC235 x 88 x 48mmBlack, White, Silver, CustomLView Specs
LTF Technology

Connect with LTF to Request a Sample or Quote

Request Form

Product Features

Flexibility

Compatible with multiple light connector types such as FreeJack, Fusion Jack, Quick Jack and more, with black, white, or silver finishes.

Line or Low Voltage

Available in line voltage, low voltage or passthrough. Compatible with all major track systems.

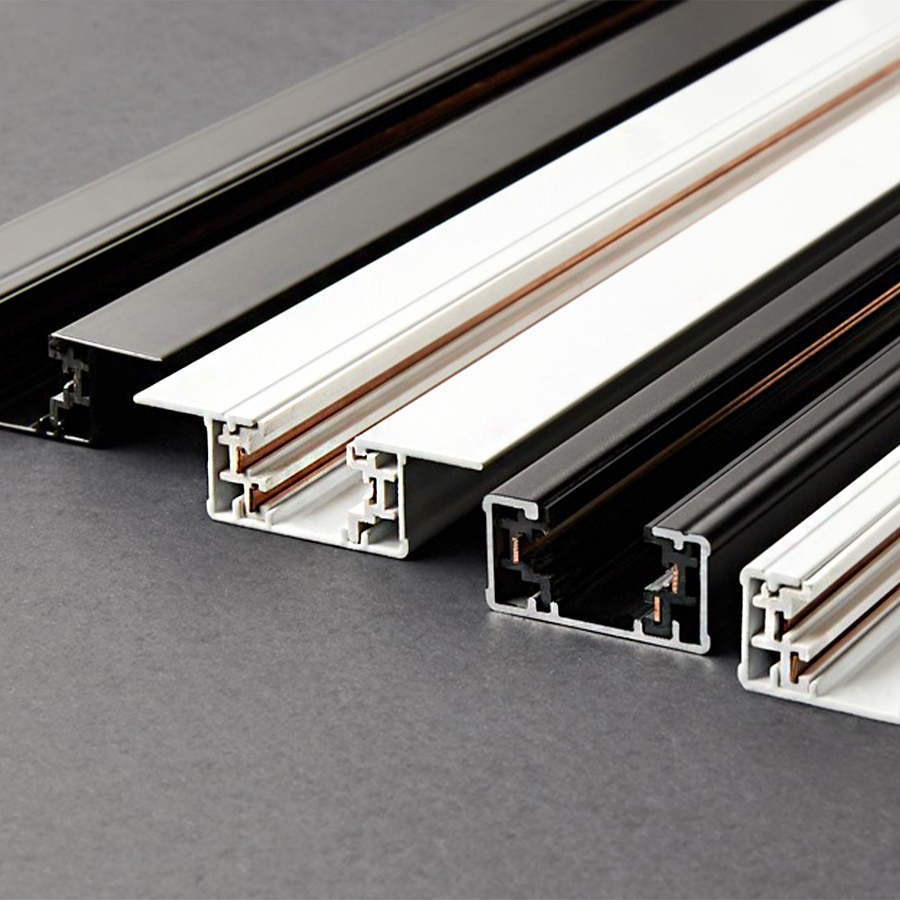

Track Types

Perfect for H, J, and L track systems.
