Custom LED Modules
LTF’s Architectural Grade QLUX series High CRI LED tape allows lighting designers the freedom to get creative. Curved surfaces, tight spaces, long runs and short cut lengths are no problem. And with high efficacy lumen output, superior color rendering (CRI 90+, 85+), optional Dim to Warm feature (2700K CCT dims to 1800K), and 2 channel adjustable CCT (2000K – 4000K) options, you can be sure your designs are as practical as they are beautiful.
Features
- High CRI 80+
- Dimmable with standard Triac or ELV dimmers
- Energy Effiecient
- Aluminum Case for Optimal Head Dissipation
- UV Free; Will Not Fade Colors
- 30,000 Hour Lifetime
Applications
- Pendant & Heads
- Flush & Recessed Fixtures
- Perfect for Art Displays, Task Lighting, and General Illumination.
Standard Models
Custom Form Factors Upon Request
| Model Number | Form Factor | Wattage | CRI Options | CCT Options | Dimensions | Specs Sheet |
|---|---|---|---|---|---|---|
| QLUXR895W24LED930K-2 | Round | 5W | 90+ | 2700K ,3000K, Custom | 89mm (OD) | Specs SheetSpecs Sheet |
| QLUXR509W30LED9 | Round | 9W | 90+ | 2700K ,3000K, Custom | 50mm OD | Specs Sheet |
| QLUXR5010W35LED9 | Round | 10W | 90+ | 2200K - 5000K | 50mm OD | Specs Sheet |
| QLUXR7615W48LED | Round | 22W | 90+ | 2200K - 5000K | 76mm (OD) | Specs Sheet |
| QLUXR15230W96LED | Round | 48W | 90+ | 2200K - 5000K | 152mm (OD) | Specs Sheet |
| QLUXR22330W100LED | Round | 50W | 90+ | 2200K - 5000K | 228mm (OD) | Specs Sheet |
| QLUXL3053.9W28LED | Linear | 3.9W | 90+ | 2700K ,3000K, Custom | 305×21mm | Specs Sheet |
| QLUXL3058W28LED | Linear | 8W | 90+ | 2700K ,3000K, Custom | 305×21mm | Specs Sheet |
| QLUXL55924LED | Linear | 8W | 90+ | 2200K - 5000K | 558.8×25.4mm | Specs Sheet |
| LTF Technology |
Connect with LTF to Request a Sample or Quote
Applications
We Offer Versatile Models for a variety of Applications
Round
Great for hallway, bathroom and kitchen. ETL listed for damp locations.

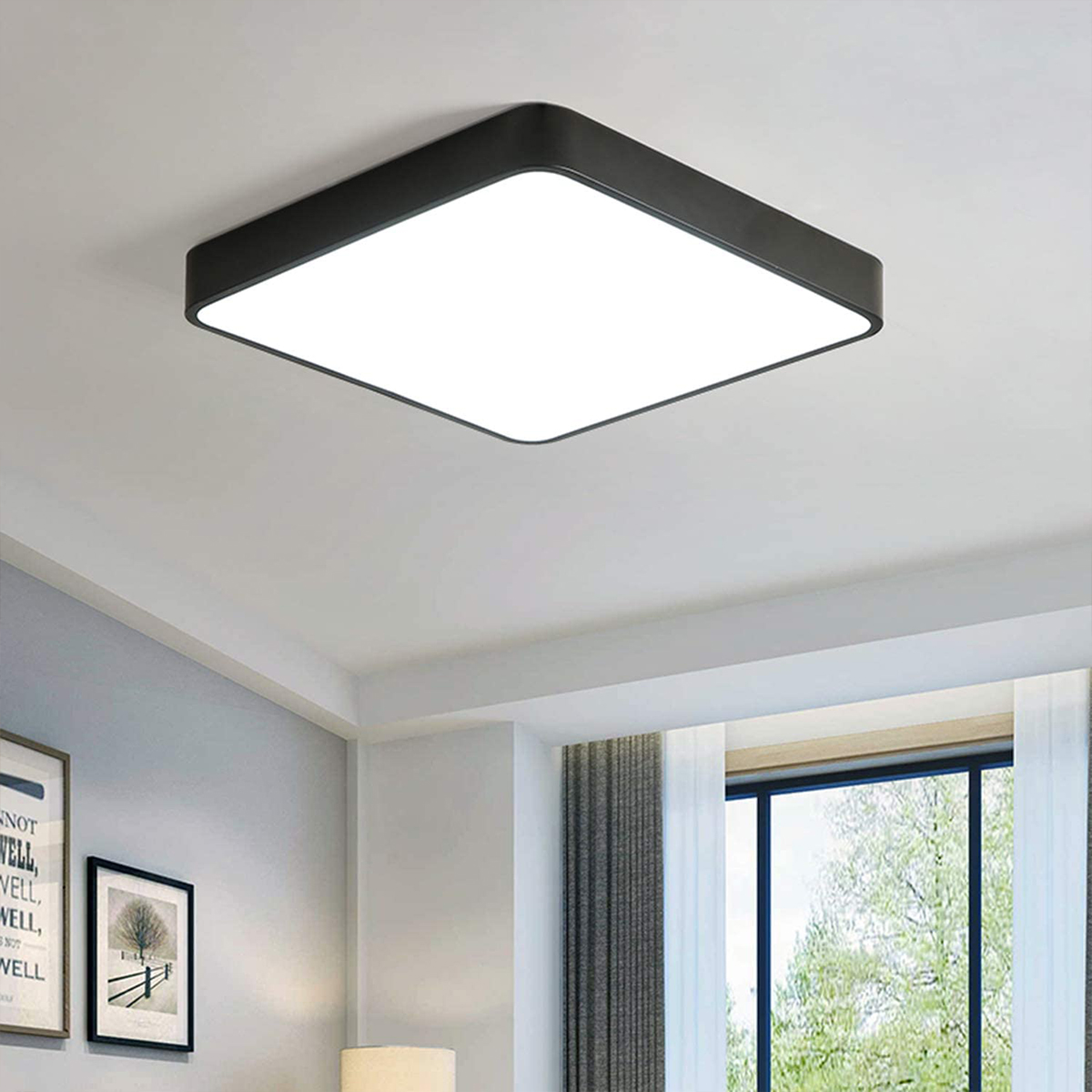

Square
Square models are perfect for clean-lined square flush mount frames, making them perfect for low ceilings and office settings.
Linear
Perfect for ceiling flush mounts, retrofit mounts
